The Best Choice for Economic and Environmental Protection
When using natural gas and biogas, the output power of a single machine ranges from 1.000-2.000 KWel

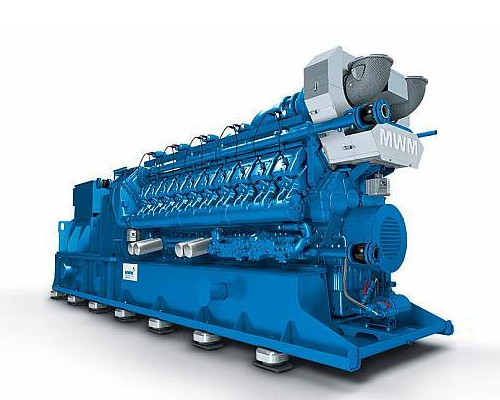

TCG 2020 / 1200-1560KW
Product characteristics
Maximize benefit
The efficiency of TCG 2020 is attributed to the optimized intake device, combustion chamber, and spark plug. The annual savings in gas costs can reach up to 15%, thereby maximizing economic benefits.
Low operating costs
Compared with other similar power generation units, the TCG 2020 generator set can reduce lubricating oil consumption by up to 50% with its optimized engine components, which means a reduction in long-term operating costs.
Customized models
Whether you need a high-efficiency model or a model with high sudden load capacity and black start performance that is more suitable for island operation, we can provide customized generator sets for you.
Optimal control system
The TEM (fully electronic management) control system not only controls the engine but also controls the heat utilization in cogeneration. The TEM system performs temperature monitoring and anti knock control on each cylinder, ensuring optimal fuel utilization and maximum output power even if there are fluctuations in gas composition.
Widely used
The latest technologies of MWM gas mixing and TEM can support our unit's application in various types of gases, even low-quality coalbed methane, landfill gas, and sewage biogas can be used.
TCG 2020 50 HzTechnical data
| Engine model |
|
V12 (1.0)2) | V12 K 1 1) | V12 K 1) | V12 2) | V16 K 1) | V16 2) | V20 2) | V20 (HE)2) |
|
Cylinder diameter/Stroke |
mm | 170/195 | 170/195 | 170/195 | 170/195 | 170/195 | 170/195 | 170/195 | 170/195 |
| Air displacement | dm3 | 53.1 | 53.1 | 53.1 | 53.1 | 70.8 | 70.8 | 88.5 | 88.5 |
| Speed | min-1 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 |
| Average piston speed | m/s | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 |
| Length | mm | 4,660 | 4,660 | 4,790 | 4,790 | 5,430 | 5,430 | 6,200 | 6,200 |
| Width | mm | 1,810 | 1,810 | 1,810 | 1,810 | 1,810 | 1,810 | 1,710 | 1,710 |
| Height | mm | 2,210 | 2,210 | 2,210 | 2,210 | 2,210 | 2,210 | 2,190 | 2,190 |
| Net weight of generator set | kg | 11,200 | 11,200 | 11,700 | 11,700 | 13,300 | 13,300 | 17,900 | 17,900 |
| Natural gas application | NOx ≤ 500 mg/Nm3 | ||||||||
| Electric power | kW | 1,000 | 1,000 | 1,125 | 1,200 | 1,500 | 1,560 | 2,000 | 2,000 |
| Mean effective pressure | bar | 15.5 | 15.5 | 17.4 | 18.6 | 17.5 | 18.1 | 18.6 | 18.6 |
| Heat output |
kW |
1,057 | 1,177 | 1,253 | 1,190 | 1,675 | 1,580 | 1,977 | 1,912 |
| Electrical efficiency |
% |
43.0 | 40.0 | 40.9 | 43.6 | 40.9 | 43.2 | 43.7 | 44.4 |
| Thermal efficiency |
% |
45.5 | 47.0 | 45.6 | 43.3 | 45.7 | 43.8 | 43.2 | 42.5 |
| Overall efficiency |
% |
88.4 | 87.0 | 86.5 | 86.9 | 86.6 | 87.0 | 86.9 | 86.9 |
| Biogas application |
NOx ≤ 500 mg/Nm3 Lowest heating value （LHV）Hu = 5,0kWh/Nm3 Sewage treatment biogas [65%CH4 / 35%CO2] Organic Biogas [60%CH4 / 32%CO2 / The rest are N2] Landfill Biogas [50%CH4 / 27%CO2 / The rest are N2] |
||||||||
| Electric power | kW | 1,000 |
|
|
1,200 |
|
1,560 | 2,000 |
|
| Mean effective pressure |
bar |
15.5 |
|
|
18.6 |
|
18.1 | 18.6 |
|
| Heat output |
kW |
1,037 |
|
|
1,194 |
|
1,577 | 2,012 |
|
| Electrical efficiency |
% |
42.6 |
|
|
43.0 |
|
42.6 | 43.0 |
|
| Thermal efficiency |
% |
44.2 |
|
|
42.8 |
|
43.1 | 43.3 |
|
| Overall efficiency |
% |
86.8 |
|
|
85.8 |
|
85.7 | 86.3 |
|
TCG 2020 60 HzTechnical data
| Engine model |
|
V12 K 1) | V12 2) | V16 K 1) | V16 2) | V20 2) |
|
Cylinder diameter/Stroke |
mm | 170/195 | 170/195 | 170/195 | 170/195 | 170/195 |
| Air displacement | dm3 | 53.1 | 53.1 | 70.8 | 70.8 | 88.5 |
| Speed | min-1 | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 |
| Average piston speed | m/s | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 |
| Length | mm | 5,970 | 5,970 | 6,640 | 6,640 | 7,470 |
| Width | mm | 1,790 | 1,790 | 1,790 | 1,790 | 1,710 |
| Height | mm | 2,210 | 2,210 | 2,210 | 2,210 | 2,190 |
| Net weight of generator set | kg | 13,000 | 13,000 | 14,900 | 14,900 | 19,800 |
| Natural gas application | NOx ≤ 500 mg/Nm3 | |||||
| Electric power | kW | 1,125 | 1,200 | 1,500 | 1,560 | 2,000 |
| Mean effective pressure | bar | 17.4 | 18.7 | 17.6 | 18.3 | 18.7 |
| Heat output | kW | 1,261 | 1,196 | 1,686 | 1,589 | 1,991 |
| Electrical efficiency | % | 40.7 | 43.4 | 40.6 | 43.0 | 43.4 |
| Thermal efficiency | % | 45.6 | 43.2 | 45.7 | 43.8 | 43.2 |
| Overall efficiency | % | 86.3 | 86.6 | 86.3 | 86.8 | 86.6 |
| Biogas application |
NOx ≤ 500 mg/Nm3 Lowest heating value （LHV）Hu = 5,0kWh/Nm3 Sewage treatment biogas [65%CH4 / 35%CO2] Organic Biogas [60%CH4 / 32%CO2 / The rest are N2] Landfill Biogas [50%CH4 / 27%CO2 / The rest are N2] |
|||||
| Electric power | kW |
|
1,200 |
|
1,560 | 2,000 |
| Mean effective pressure |
bar |
|
18.7 |
|
18.3 | 18.7 |
| Heat output |
kW |
|
1,200 |
|
1,588 | 2,026 |
| Electrical efficiency |
% |
|
42.8 |
|
42.3 | 42.7 |
| Thermal efficiency |
% |
|
42.8 |
|
43.1 | 43.2 |
| Overall efficiency |
% |
|
85.6 |
|
85.4 | 85.9 |
